Asus Lyra

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
Product Segment
AC2200 ultimate AC performance : 400+867+867 Mbps
Coverage

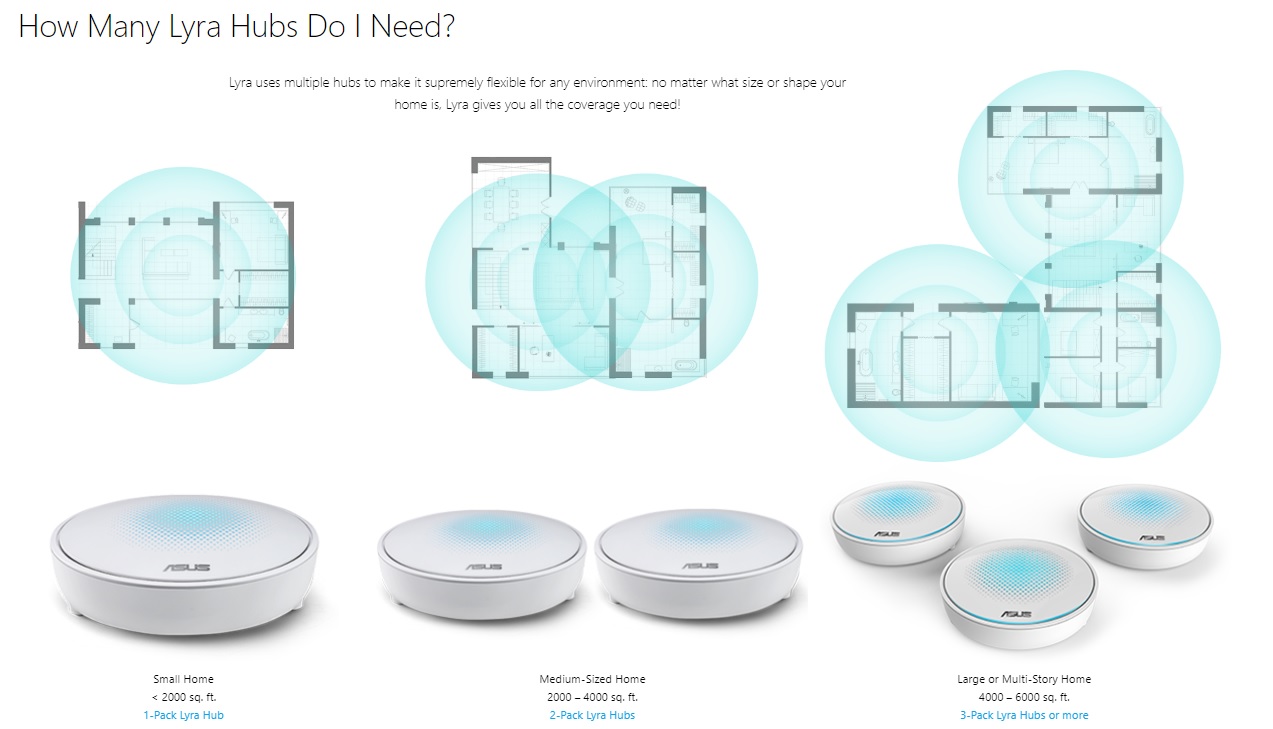

Very large homes
Data Rate
802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n : up to 400 Mbps 802.11ac : up to 867 Mbps
Antenna

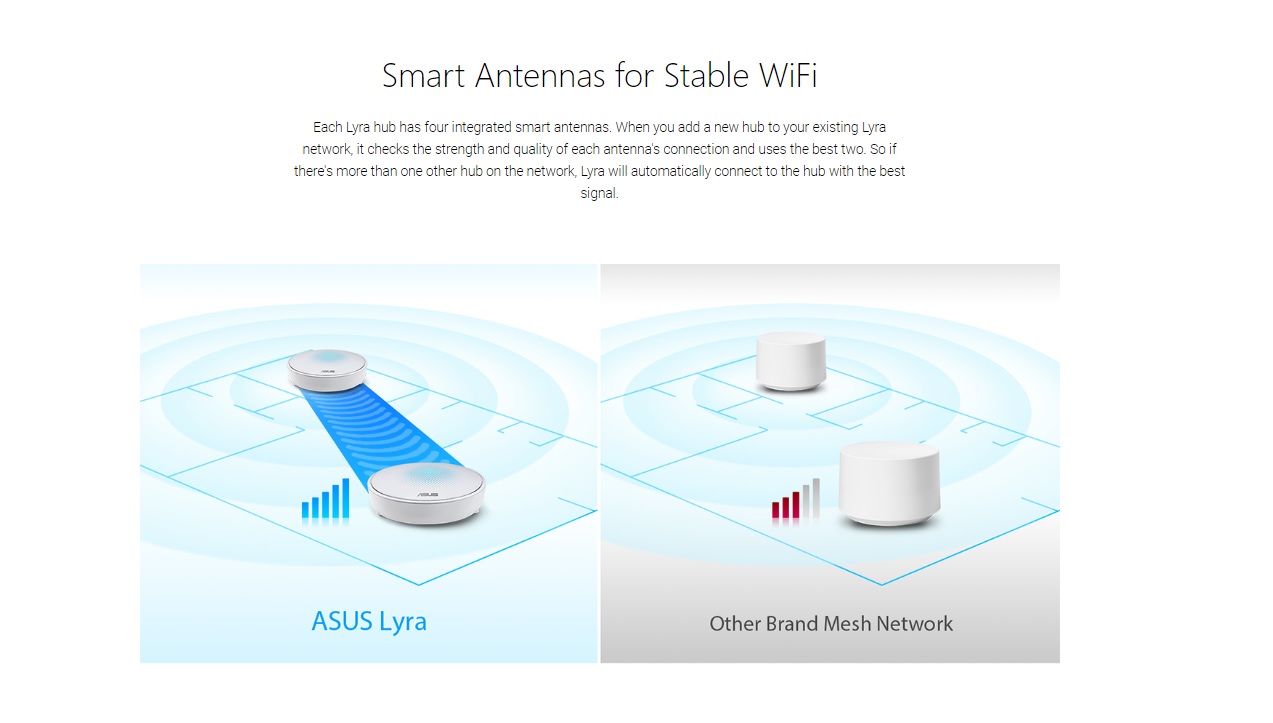

Internal antenna x 7
Transmit/Receive

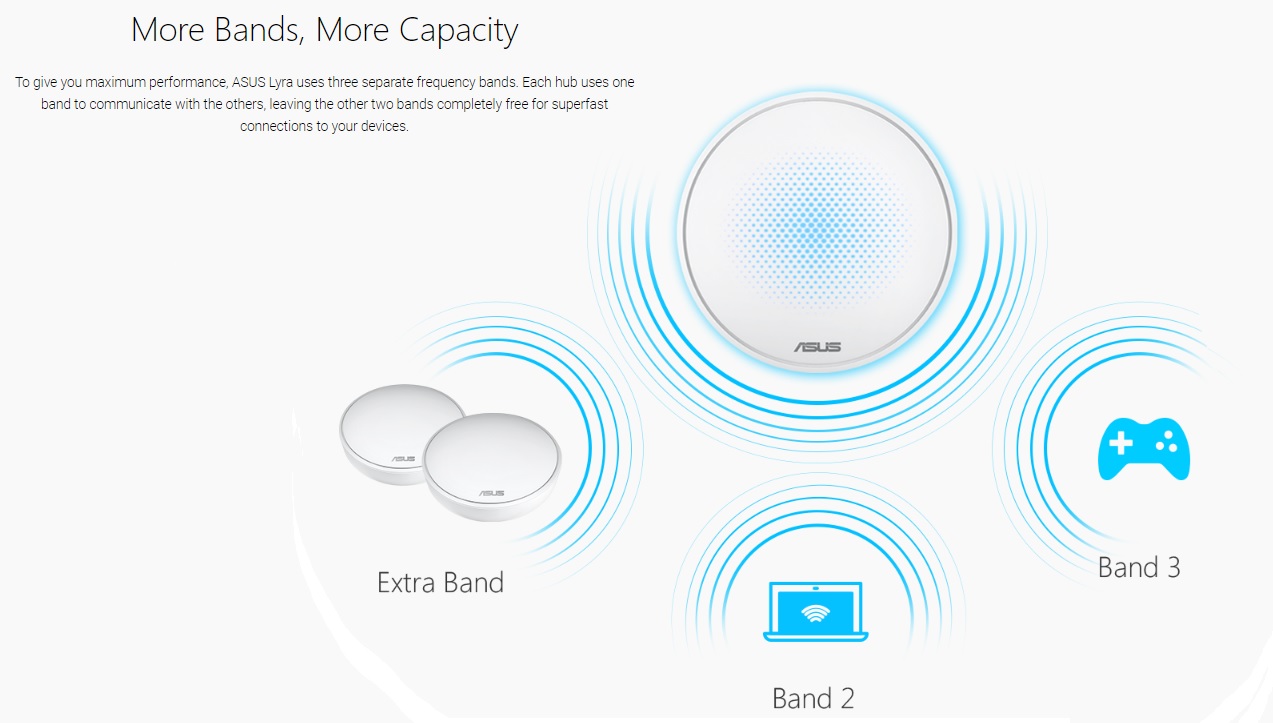

MIMO technology 2.4 GHz 2 x 2 5 GHz-1 2 x 2 5 GHz-2 2 x 2
Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2
Encryption
WPA2-PSK
Ports
RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 1
Features
MU-MIMO Adaptive QoS AiProtection Parental Control Guest Network :
Button
Reset Button
Power Supply
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 2 A current
OS Support
Windows® 10 Windows® 8.1 Windows® 8 Windows® 7 Mac OS X 10.1 Mac OS X 10.4 Mac OS X 10.4 Mac OS X 10.5 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8
Dimensions
149.8 x 149.8 x 49.5 ~ mm (LxWxH) (Without Bezel)
Package Content
•Lyra x 3 •AC adapter •Network cable (RJ-45) •Quick Start Guide
